Over charge detection voltage: 4.28+ 0.05 V
Over charging voltage: 4.095-4.195V
Over discharge voltage: 2.55±0.08
Over charge detection delay time 0.1s
Temperature range -30-80
Short circuit detection delay time: 100ms
Over current detection delay time: 500 ms

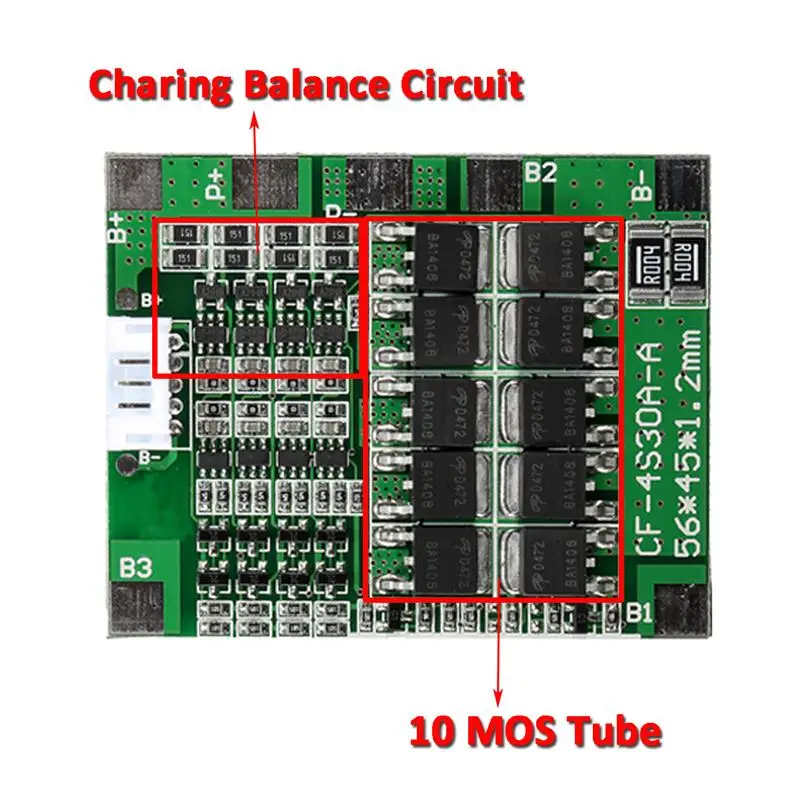

Balanced current: 60mA
Working current: 30A
Over current: 60A
Short circuit protection function: there is, disconnect the load can be self recovery.
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function, balance.
Charging port of the plate and the discharge port is the same, both positive and B- connecting
battery”-“, P- charging port and port on the negative electrode;

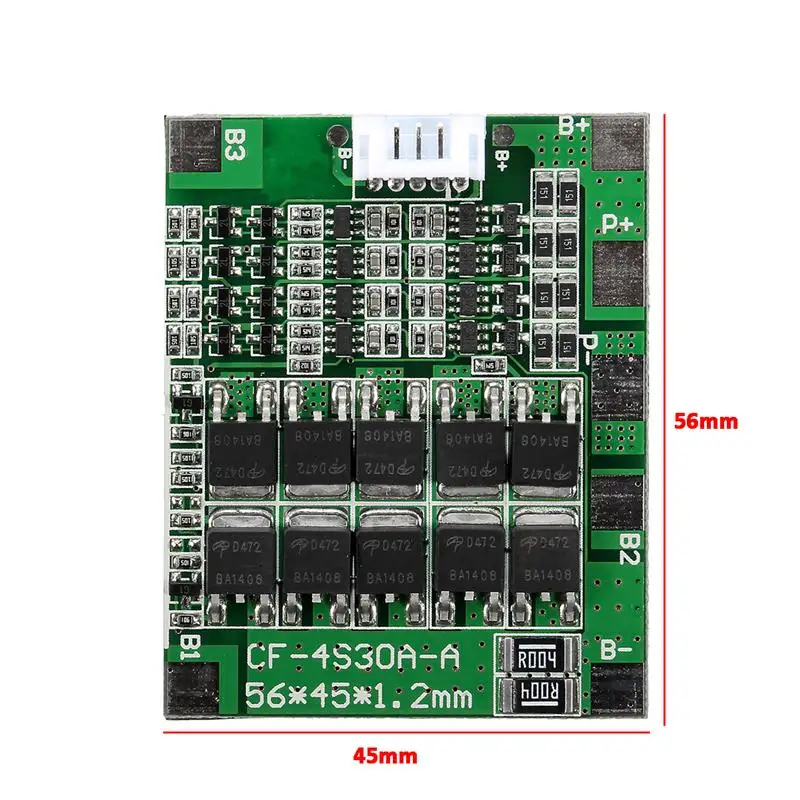

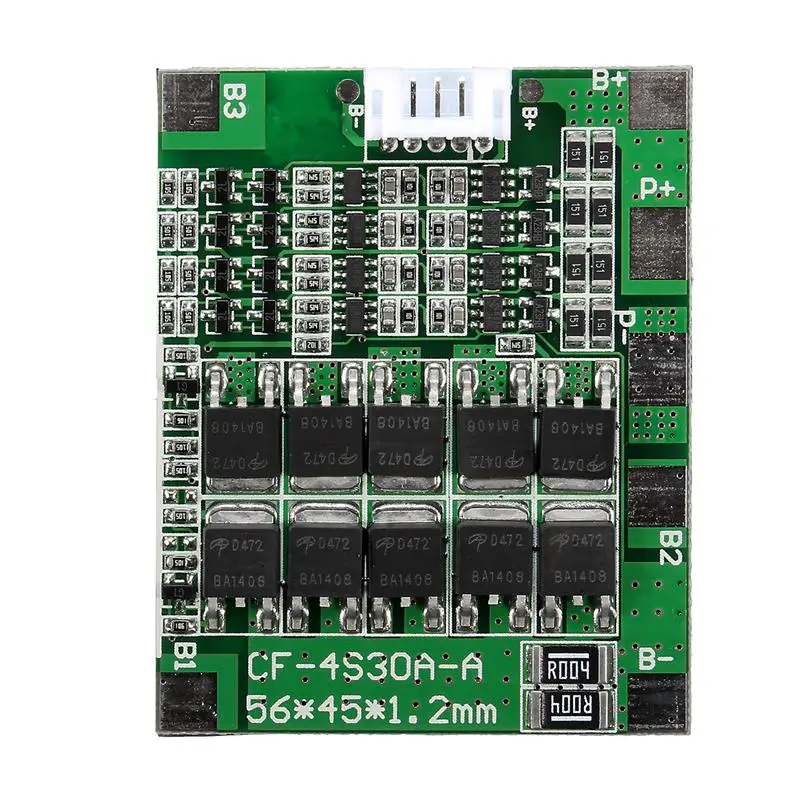

B-, N-, P- pads are all over the hole, the hole diameter of the pad is 3.5mm;

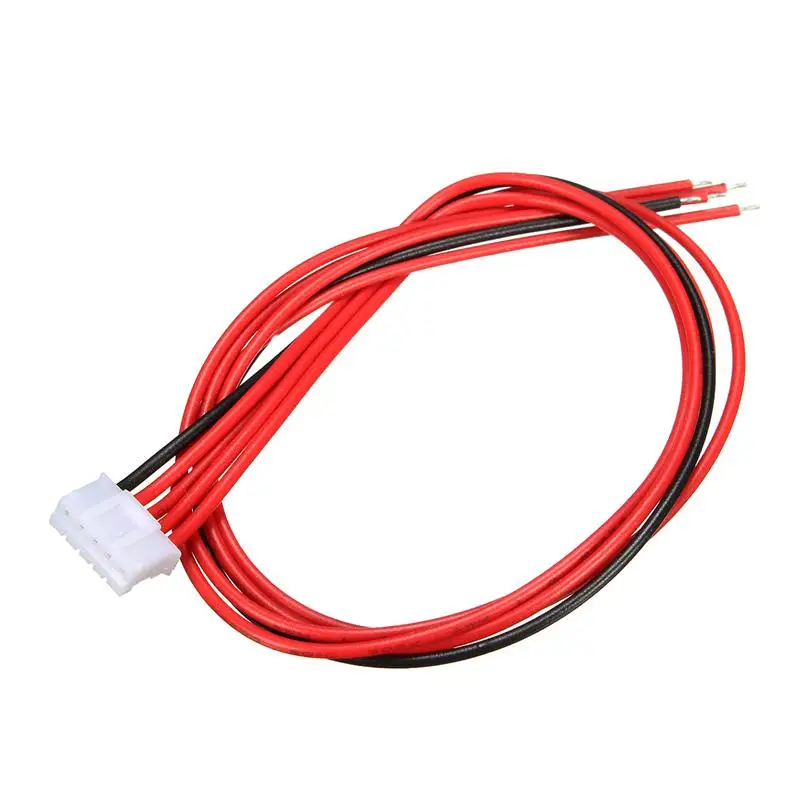

The battery charging detection interface with DC output in the form of needle. Do the same mouth
when the N- is not wiring.

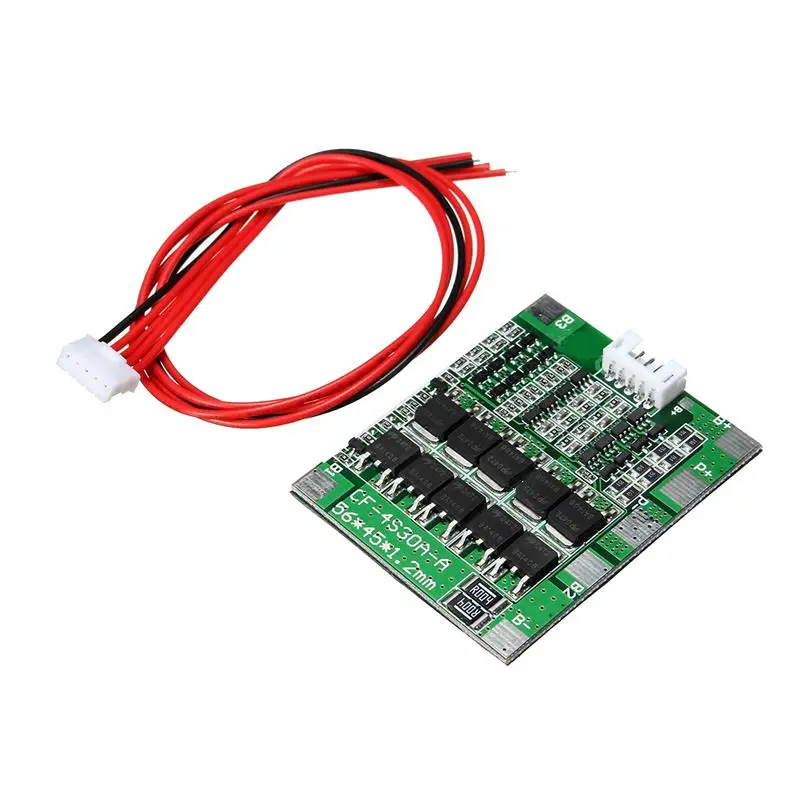

1x Protection board
